| Model Number |
A2FM63/61W-VAB040 |
| Type |

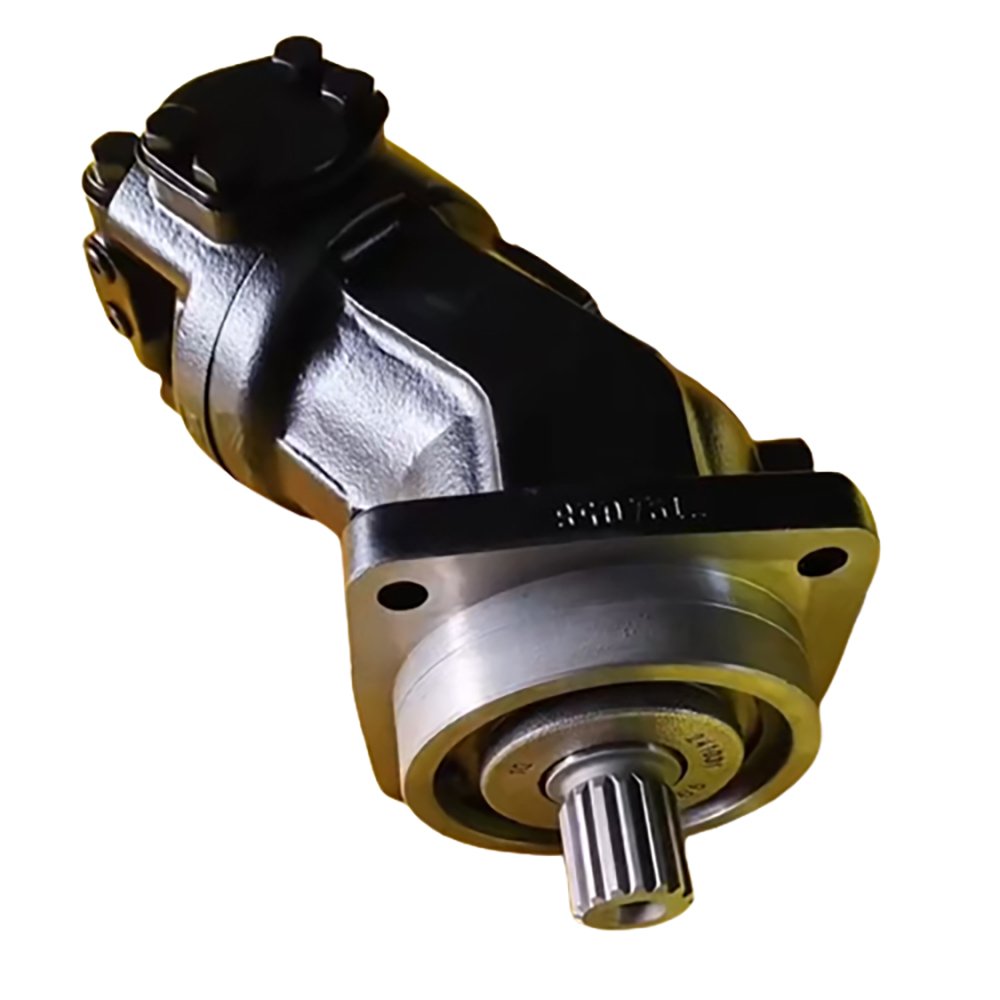

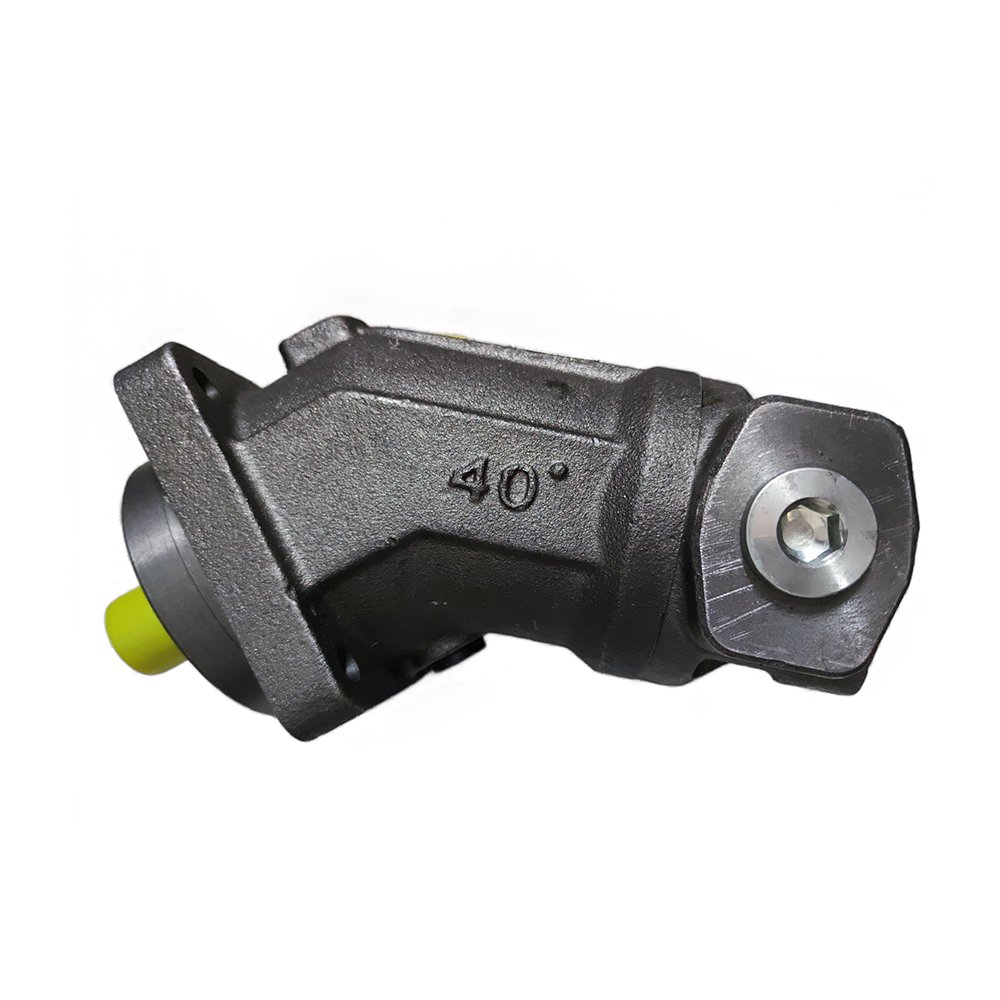

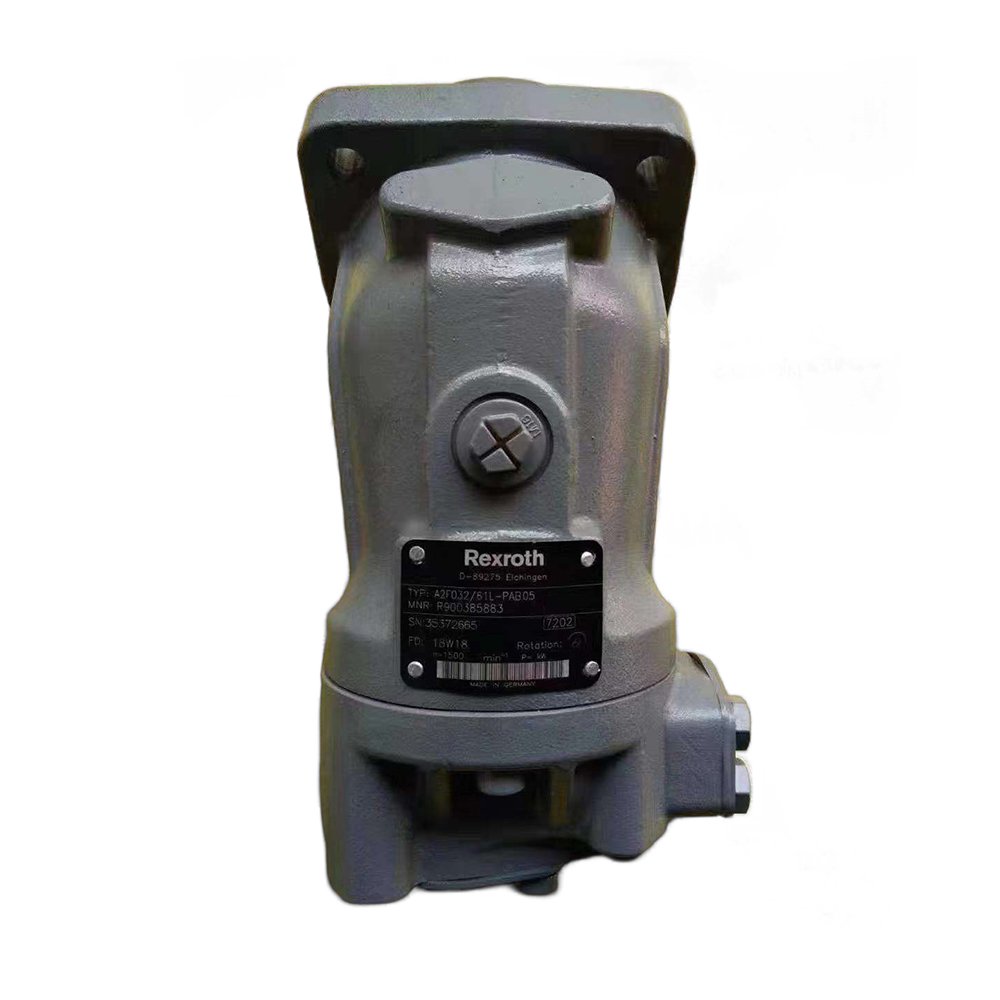

Axial Piston Fixed Motor A2FM |
| Displacement |
63cm3/rev |
| Max. Speed |
5000rpm |
| Max flow |
315L/min |
| Torque at Δp = 350 bar T |
350Nm |
| Torque at Δp = 400 bar T |
400Nm |
| Filling capacity |
0,45L |
| Weight |
18kgs |
| Product Characteristics |
– Fixed motor with axial tapered piston rotary group of bent axis design, for hydrostatic drives in open and closed circuits |
| – For use in mobile and stationary application areas |
| – The output speed is dependent on the flow of the pump and the displacement of the motor. |
| – The output torque increases with the pressure differential between the high and low pressure sides and with increasing displacement. |
| – Careful selection of the displacements offered, permit sizes to be matched to practically every application |
| – High power density |
| – Compact design |
| – High overall efficiency |
| – Good starting characteristics |
| – Economical conception |
| – One piece pistons with piston rings |
| Application |
Plastics Injection Molding Machine, Folding Press, Punching Press, Hydraulic Unit, Lifting Platform, Marine Applications, Die Casting Machines, Packing Presses, Shears, Ground Drilling Machines, Test Rigs, Hydraulic Presses, Crane Building, Lifting Devices, Garbage Collection Vehicles |
